The carrier frequencies reach up to 920 MHz and can be modulated by sinusoidal, square, or triangular waves up to 3 MHz. A comprehensive range of practical exercises focused on the manipulation and measurement of basic modulation circuits is available to the student.

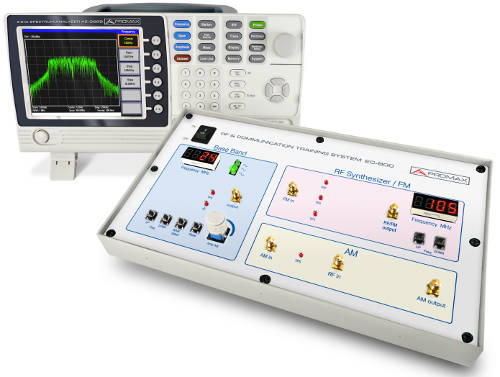

The essential tool for working with radio frequencies is the Spectrum Analyzer. This is why the EC-800 trainer is paired with the new Promax AE 366B Spectrum Analyzer. This equipment, a measuring instrument that reaches 3 GHz and is particularly well-suited for educational settings, was used in the design of the practical exercises.
The equipment is supplied with a practical manual for both students and instructors, with a special emphasis on the essential theory for working with high-frequency signals.
