Designing cable and pipe transits using CAD software can be time-consuming and complex, as it is subject to constant changes. Roxtec Transit Designer™ is free software that helps architects and engineering firms streamline the entire process of designing, purchasing, and installing cable and pipe transits through self-planning.
To start using Roxtec Transit Designer, engineers, after registering on the Roxter website, only need to enter their cable schedule, sealing or certification requirements, assembly preferences, and preliminary opening sizes into the software.

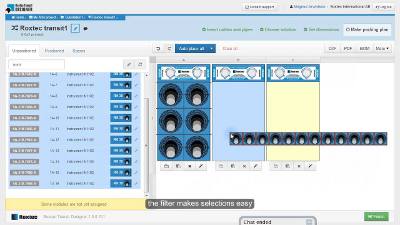

With this data, you can obtain the manufacturer's approved plans and documents, as well as bills of materials and installation instructions. Roxtec Transit Designer offers a drag-and-drop visual program and automatic cable and pipe placement.
Once the design is finalized, the plans can be issued electronically and converted into 3D models, CAD drawings, material delivery notes, and installation instructions. This provides contractors with clear and simple plans and instructions to perform the sealing according to the specifications, saving time and money by reducing on-site installation time.
Roxtec Transit Designer, which can be widely used across all industries, reduces project risks to people, buildings, and property because designers can precisely map the routes of cables and pipes. This provides an accurate understanding of how the entire system fits together and ensures that cables are positioned closer together.
The software requires no special installation on your computer. Your work is secure and accessible online from anywhere in the world, and the software is always up to date.
Furthermore, Roxtec's sealing experts provide ongoing support to designers via chat, in their own language, and also offer the option to share your work with project teams anywhere in the world.
