Applications:
• Performing field terminations of fibers and patch cords
• Repairing defective patch cord ends without replacing the entire cord
• Simplifying connector changes in distribution frames with high connector density
• Repairing tails without opening splice cassettes
• Building custom patch cords in the field
• Saving space in small FTTH wall outlets and CTOs

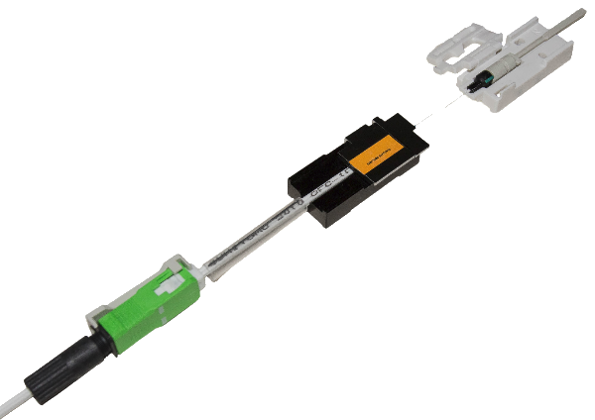

The connector offers excellent quality thanks to fusion splicing, with the advantage that the splice protector is located inside the connector.
The assembly process is virtually identical to that of a fusion splicer. Assembly time is less than 1 minute.
It can be mounted on the following cable constructions:
- 3 mm round
- 2 mm round
- 3x2 mm square drop cables
- 1.6x2 mm square drop cables
- 900 microns
- 250 microns
• Supplied in boxes of 100 units, which also include 1 plastic holder for placing the ferrule in the fusion splicer and the assembly manual
. • UPC connectors have a low return loss polish (less than -50 dB). They are identified by their blue color
. • APC connectors have an 8° convex angle polish with low return loss (less than -60 dB). They are identified by their green color.
