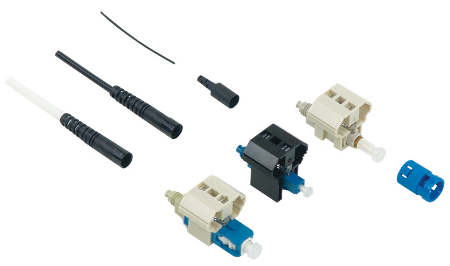

AFL FAST connectors are field-installable, pre-polished connectors that eliminate the need for manual polishing. They feature a factory-prepolished ferrule and precise mechanical alignment, ensuring low-loss termination for both single-mode and multimode fibers. These connectors are compatible with 250 µm and 900 µm fibers, as well as 900 µm² fibers with 2 mm and 3 mm stranding. All primary fibers are compatible, and each connector is color-coded for easy identification.
Included with the FAST connector is an innovative translucent wedge that allows the use of a VFI (Visual Fiber Interface) to provide a "pass/no-pass" signal upon physical contact. Additionally, each connector comes factory-installed with a wedge clip that holds a wedge clamp in the open position until a fiber is inserted. Once inserted, the wedge clip is removed, securing the fiber in the fiber channel by aligning it with the prepolished fiber stub inside.
Amphenol FSI fiber optic connectors for military and aviation applications
Mouser Electronics, Inc. is distributing fiber optic connectors from Amphenol Fiber Systems International (FSI). Designed for use in harsh environments, Amphenol FSI fiber optic connectors can withstand extreme temperatures and are ideal for aerospace and other applications.
