Its 24-bit sigma-delta ADC modulation offers a high-resolution sampling rate of 192 kS/s, making it ideal for measuring signals with high dynamic range. It also provides a 0.5 Hz AC cutoff frequency for vibration and supports software selection of AC or DC input. The input channels also feature 4 mA power for piezoelectric sensors, making it optimal for monitoring accelerometers and microphones. It includes multiple trigger functions, an internal timebase, and 512 MB of RAM.

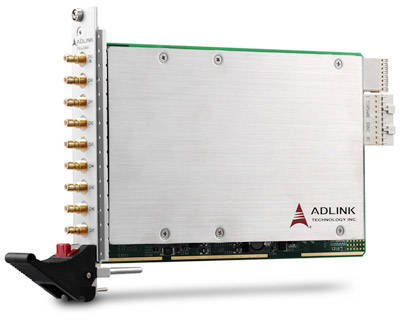

The new PXIe-9524 is a card specifically designed to meet the requirements of vibration analysis and audio testing.
Key features:
- High density, high resolution, and high dynamic range.
- Eight 24-bit analog inputs with simultaneous sampling at 192 kS/s.
- High-resolution 24-bit sigma/delta ADC.
- High dynamic range up to 110 dB. (106 dB SFDR, 104 dB SNR, and -106 dB THD)
- Multi-module synchronization support.
- Simple expansion up to 136 channels in an 18-slot PXI Express chassis.
- Features a phase-locked loop (PLL) for synchronizing multiple cards with an external reference clock.
- Operational flexibility
- Input ranges up to ±10V or ±1V, with software-selectable AC/DC coupling.
- Differential and pseudo-differential input configuration
- Overvoltage protection up to ±42.4V.
