It performs round-trip time (RTT) checks and tests to measure network speed under dynamic and static configuration protocols and IP scanning to display information on all terminals connected to the local network. It can also evaluate link connection capabilities such as supported network speed (10BASE-T or 100BASE-TX) and duplex mode (half or full-duplex).The device provides physical information for the LAN cable under test, including its length, fault locations (open or short circuit), and wire assignment (Pass/Fail).
Through its high-resolution graphical TDR (Time Domain Reflectometer) and TDX (Time Domain Crosstalk) displays, users can pinpoint fault locations along cables up to 500 meters long.
The TDR and TDX can also be used with other cable types, such as coaxial cables for cable television networks, HFC, and telephone cables.

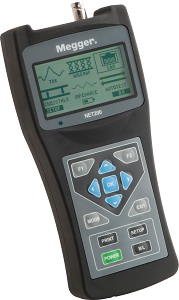

The NET200 is supplied as a kit comprising a complete set of test leads and adapters and boasts the widest range of functions available in its class. This makes the NET200 the best tester of its kind on the market today.
• Measures logical network performance
• Evaluates link connection capacity and locates faults up to 500 meters away
• 1000BASE-T, performs automatic measurement of signal performance, cable mapping, and cable length
• Features a large, high-resolution backlit display
• 1 kHz analog output signal
• Built-in TDR and TDX
