The FlexScan OTDR family allows both expert and novice technicians to troubleshoot problems in both new and existing fiber optic networks.
Features:
• Pocket-sized OTDRs with built-in fault locator on all models

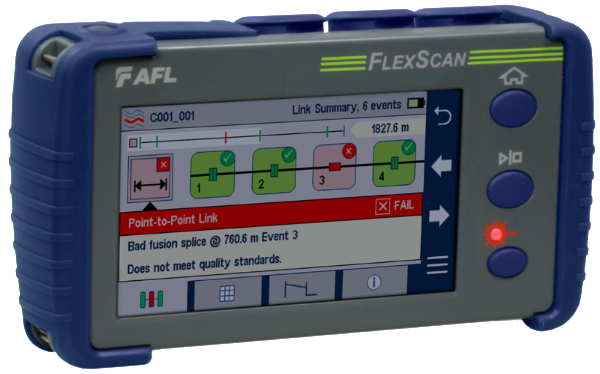

• 4.3" auto-reflective color touchscreen for easy navigation
• Weighs 400 grams
• 12-hour battery life with programmable automatic power-off
• Internal and external USB memory
• Menus in 9 languages (including Spanish)
• The FlexScan OTDR family includes several models for both point-to-point and PON networks
• All models include the following features as standard:
o LinkMap: provides an overview of the network at a glance
o SmartAuto: automatically analyzes the network and optimizes measurement parameters
o Pass/Fail Analysis: analyzes the entire link as well as individual events (indicates possible causes in case of failure)
o OTDR port connection quality check

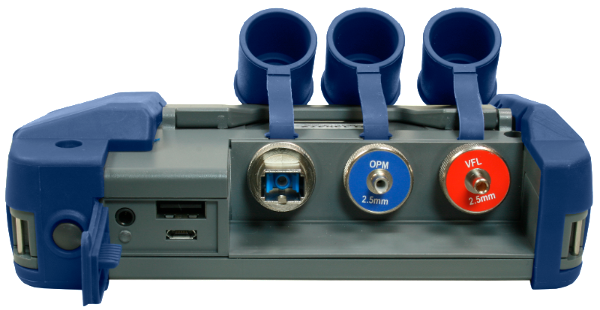

• Option to include OLS and OPM
• Option to connect via Bluetooth to the Focis Flex inspection probe
• Option to choose connector polishing (PC or APC)
• Option to transfer files via Bluetooth/WiFi as well as via USB port
The family consists of 5 SM models between 1 and 3 wavelengths with up to 37 dB of dynamic range.
In addition, there are kits that include the FlexScan, launch reels, cleaning products, Focis Flex screen microscopes, and traffic identifiers.
