This family completes the ecosystem of solutions for mobile signal capture, amplification and distribution, offering specific alternatives for each deployment scenario: from rural environments with low coverage to indoor IoT applications or high-capacity FWA solutions.
PA3 data antenna for maximum capacity and spectral efficiency
Designed for applications requiring greater capacity, stability, and performance, the 4x4 MIMO version provides increased spectral efficiency, higher data transmission capacity, and greater resilience to interference. It is an ideal solution for deployments aimed at improving connectivity in homes, offices, and suburban, rural, or industrial environments, especially in FWA scenarios.
Its main technical features:
Multi-band compatibility 4G LTE / 5G NR
4x4 MIMO and SISO versions
Frequencies: 690–960 / 1700–2700 / 3200–3800 MHz
Maximum gain up to 14 dBi depending on the band
Robust and compact design for outdoor use (355x355x205 mm)
Thanks to its optimized directivity and advanced MIMO architecture, the PA3 is positioned as a key element in high-capacity deployments and private 5G networks.

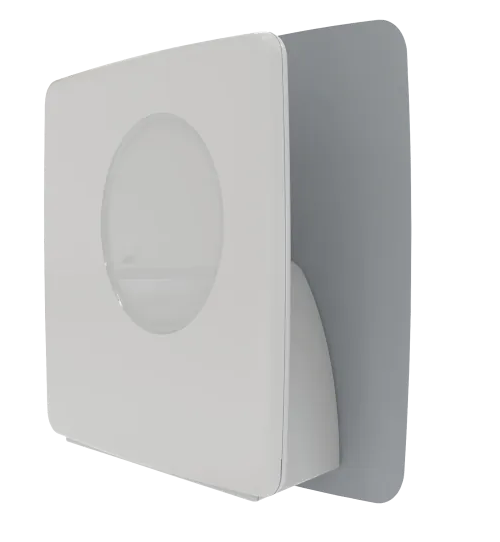

Televés PA3 data antenna for FWA scenarios
A6 high-gain directional data antenna for low-coverage environments
Designed for scenarios with limited signal strength, its installation, pointed directly at the base transceiver station (BTS), maximizes signal reception and improves link quality in rural or remote environments. It is commonly used as a donor antenna in repeater systems, optimizing the incoming signal before its internal redistribution.
Its main technical features:
Frequencies: 690–960 / 1710–1785 / 1805–1880 MHz
3G/4G bands (b28, b20, b8, b3) and 5G n28
10 dBi gain across all bands
Dimensions: 900x554x696 mm
SISO Type
Its high directivity improves link stability and extends mobile coverage in areas with radio shadows.

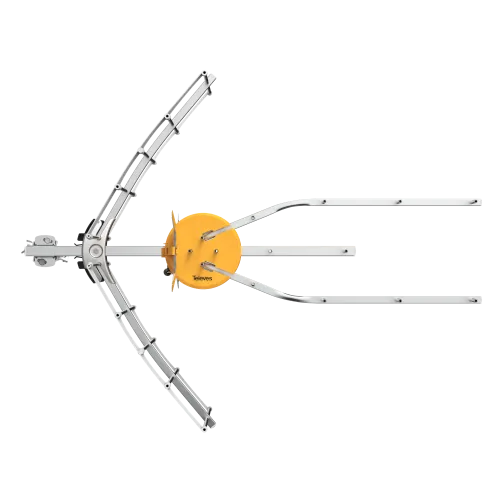

Televés A6 high-directivity data antenna
Compact omnidirectional PCB antennas for IoT and indoor coverage
PCB antennas are notable for their compact, discreet, and low-profile design. Their omnidirectional radiation pattern makes them ideal for IoT applications, M2M devices, routers, industrial equipment, and indoor coverage extensions. They offer a balanced pattern in multiple directions, eliminating the need for alignment and ensuring consistent reception even in environments with multiple signal sources.
Its main technical features:
Frequencies up to 690–3800 MHz depending on the model
Gain of 2 to 9 dBi depending on the version
SISO omnidirectional design
Compact formats from 178x33x9.5 mm
Their balance between size, simplicity and performance makes them the perfect complement for indoor deployments associated with repeaters or FWA solutions.

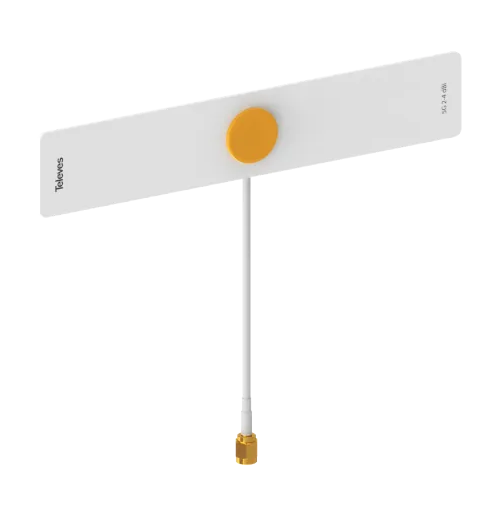

Televés PCB data antenna with compact and discreet format
With the addition of this new range of Data Antennas, Televés consolidates a comprehensive offering that covers the entire mobile connectivity value chain: signal acquisition (A6 and PA3), intelligent optimization and amplification (Booster 3), and efficient indoor distribution (PCB). This modular, scalable architecture, ready for the current challenges of 4G and 5G, reaffirms Televés' commitment to developing its own robust, performance-oriented technological solutions for real-world deployment environments.
