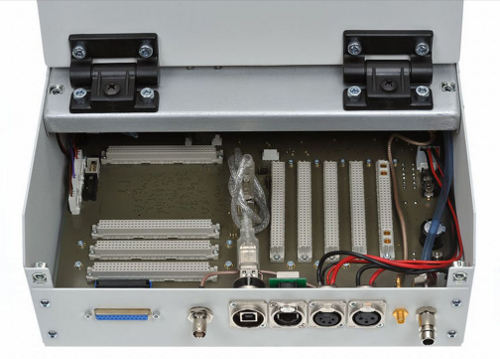

The RTX2300 can be used for printed circuit boards (PCBs) as well as for end-product testing. It features a customization area that allows for interconnection between internal and external measurement functionality and the instrument under test (DUT), reducing space requirements and complexity for the overall test system. The RTX2300's flexibility simplifies test platform customization, enabling cost-effective replication. The production test system can be implemented using an RTX2300 in combination with an RF communications tester (such as the RTX 2011 DECT/CAT-iq RF Tester or Agilent
8960) and a PC to perform the test runs.

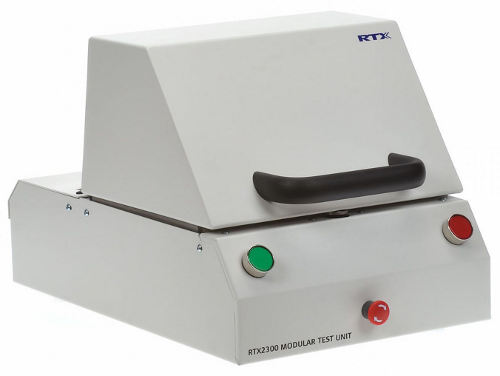

The RTX2300 reduces the complexity, size, and cost of the ATE system by including internal modular instrumentation for the test unit, including a digital voltage meter, tone generator, and signal multiplexer. Optional internal instrumentation includes a programmable power supply, battery simulator, and high-stability frequency counter. These components allow calibration and testing of the baseband and audio portions of the DUT without the need for additional external equipment. The RTX2300's RF-shielded enclosure can be customized with a specific instrument probe mount, including a pneumatic catch unit to automatically secure the DUT in place during testing.The RTX2300 can reduce overall product testing time because it's designed to allow multiple units to be connected in parallel, enabling optimal use of RF, baseband, and acoustic testing resources and effectively reducing DUT handling time. Furthermore, the RTX2300 can improve manufacturing processes because it can be physically reconfigured in just seconds to accommodate different products and test types. For
more information or a quote, contact us.
