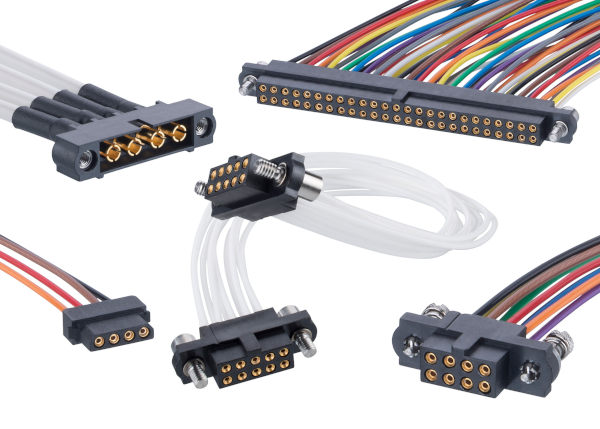

They are supplied directly from stock and can now be ordered through Mouser, eliminating long lead times. They cover both signal (Datamate J-Tek/L-Tek) and power (Datamate Mix-Tek) configurations. They offer inherent cost-effectiveness and are particularly well-suited for developing one-off prototypes or small-batch projects.
All of them are manufactured in accordance with the IPC-A-620 standard for wire harnesses and wiring. They have undergone rigorous electrical testing, as well as a thorough inspection process during and after production. The wires used are PTFE insulated. The signal wires are 24 AWG, while the power wires are 10 AWG or 12 AWG, for currents of 40 A or 20 A.
Thanks to the Datamate connectors at the core of these cables, continuous interconnect robustness is always guaranteed. They offer the highest resistance on the market to shocks (100G for 6ms), vibrations (10G for 6 hours, 2 hours/axis), and extreme temperatures (-55°C to +125°C). Furthermore, they can withstand up to 500 connection cycles. Consequently, Harwin's ready-to-use wiring systems are robust enough for installation in the harshest application environments, such as aerospace, aviation, industrial drives/controls, robotics, and motorsports.
Outsourcing cabling systems offers numerous advantages, as it avoids the need to invest in new tools, add new steps to manufacturing, and the corresponding training of personnel without prior experience.
