“Wizard” function: Step-by-step user guidance.
Rohde & Schwarz is the only manufacturer offering a cable and antenna analyzer with a “Wizard” function that guides users step-by-step through the entire process. Even users with no experience operating test and measurement equipment can, for example, check for cable faults using the distance-to-fault (DTF) measurement function or measure antenna impedance and insulation. Measurement errors due to incorrect equipment configuration are a thing of the past. Network operators can now adapt the “Wizards” in the lab to their own measurement protocols and offer them to their service providers for use at the antenna site. The predefined measurement protocols, available in various file formats, allow for verification of the correct execution of tasks. The R&S ZVH reduces the time required for compliance measurements, the need for training, and maintenance costs.
100 dB dynamic range
Thanks to its RF capabilities, the R&S ZVH is one of the best analyzers in its class. It is the only cable and antenna analyzer on the market that offers a 100 dB dynamic range, thus complying with the standard that sets a dynamic range of >90 dB for repeater measurements. This portable analyzer replaces conventional measurement systems consisting of a signal generator and a spectrum analyzer. The integrated DC power supply provides power to active devices under test (DUTs), such as amplifiers, at both measurement ports via the RF cable. This feature is especially useful for tower amplifiers (TMAs).
Operational Comfort and Safety:
This portable analyzer, weighing only 3 kg and measuring 194 mm x 300 mm x 69 mm, is also easy to use: key functions, such as the "assistant" mode, are available at the touch of a button. Thanks to its vertical design, all operating controls are within easy reach of the operator, even while wearing work gloves, without needing to put down the instrument. R&S ZVH analyzers meet IP51 safety requirements and feature waterproof and dustproof connectors, making them a reliable tool even in adverse weather conditions. A fully charged battery provides over four hours of operation. If the field measurement task requires more time, the battery can be easily replaced on-site.
A device ready for future measurement demands.
In the long run, the R&S ZVH cable and antenna analyzer is a future-proof investment: it offers options for spectral and network analysis and spectrogram visualization, covering applications such as spectrum analysis, field strength measurements, signal monitoring, and interference detection. With external power sensors, the R&S ZVH can also function as a power meter. When used with a directional power sensor, the analyzer can simultaneously measure antenna matching and transmitter output power up to 300 W.

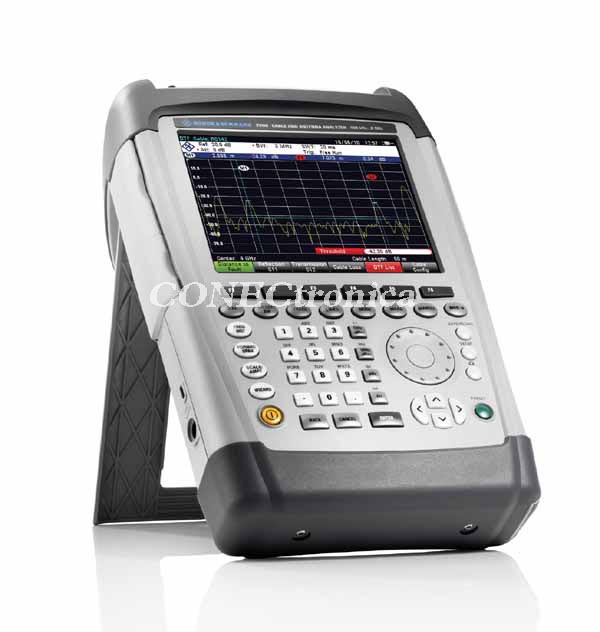

The new R&S ZVH4 and R&S ZVH8 cable and antenna analyzers from Rohde & Schwarz are now available.
