Along with the HD1024 technology, Teledyne LeCroy offers its usual suite of tools, applications, and utilities that enable exceptionally in-depth signal analysis, making it easy to detect and debug difficult-to-find anomalies. The HDO9000 high-definition oscilloscopes offer 10-bit resolution, bandwidths of 1, 2, 3, and 4 GHz, and a sampling rate of 40 GSs/s—features unique in the market—enabling efficient and precise high-definition debugging. Two units can be synchronized to operate in 8-channel oscilloscope mode without limitations, another unique feature in this range of high-performance oscilloscopes.
HD1024 High Definition Technology:
A critical element of the HDO9000 family is HD1024 technology, which offers 10-bit vertical resolution up to 4 GHz bandwidth and a sampling rate of 40 Gs/s. Signals are displayed cleanly and clearly, without obscuring the fine signal details that are unseen by a conventional 8-bit oscilloscope. HD1024 technology allows the HD9000 high-definition oscilloscopes to dynamically and automatically determine the best ADC settings under each measurement condition. In this way, the oscilloscope always provides optimal resolution. Furthermore, using optimized hardware filtering, the HDO9000 can achieve an additional resolution beyond 10 bits, up to 13.8 bits. Like all other members of the HDO high-resolution oscilloscope family (10-bit with HD1024 and 12-bit with HD4096), it incorporates an exceptionally low noise architecture that provides an unmatched effective number of bits (ENOB).
MAUI Advanced User Interface
MAUI One-Touch is an advanced user interface developed to put the full power and capabilities of the oscilloscope directly at the user's fingertips. Designed for touch, all important oscilloscope controls, including waveform positioning and zoom, cursors, measurement settings, and interaction with results, are performed with intuitive touchscreen controls.
MAUI is built for simplicity: basic functions and advanced tools are seamlessly integrated to streamline operation. Shortcuts to save time and intuitive dialogs simplify setup, and the "smart" display resizes signals and measurements for easier viewing and debugging.
MAUI is designed to solve: All aspects of the signals can be measured to quickly identify problems and determine their causes using the large set of tools and find the solution with the fast and powerful analysis capabilities.
high-definition debugging software

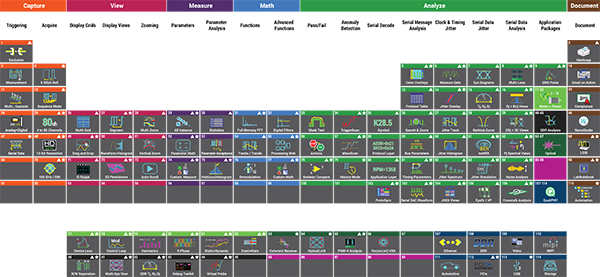

, in addition to its versatile standard set of tools, offers a wide variety of optional software packages to cover any analysis, validation, and debugging requirements. These include automated verification and standards compliance packages, decoding, triggering and protocol analysis, serial data analysis with eye diagram and jitter measurements, as well as documentation tools, event search, spectral analysis, automatic power measurements, and more.
The –MS models for mixed signals incorporate 16 digital lines that can be used in combination with the analog channels for triggering, decoding, and measuring, facilitating the analysis of synchronization irregularities. Additionally, the HDO9000 is compatible with the HDA125 High-Speed Digital Logic Analyzer with a 12.5Gs/s sampling rate and 18 channels, and a revolutionary QuickLink probe connection system for high-performance digital acquisition.
